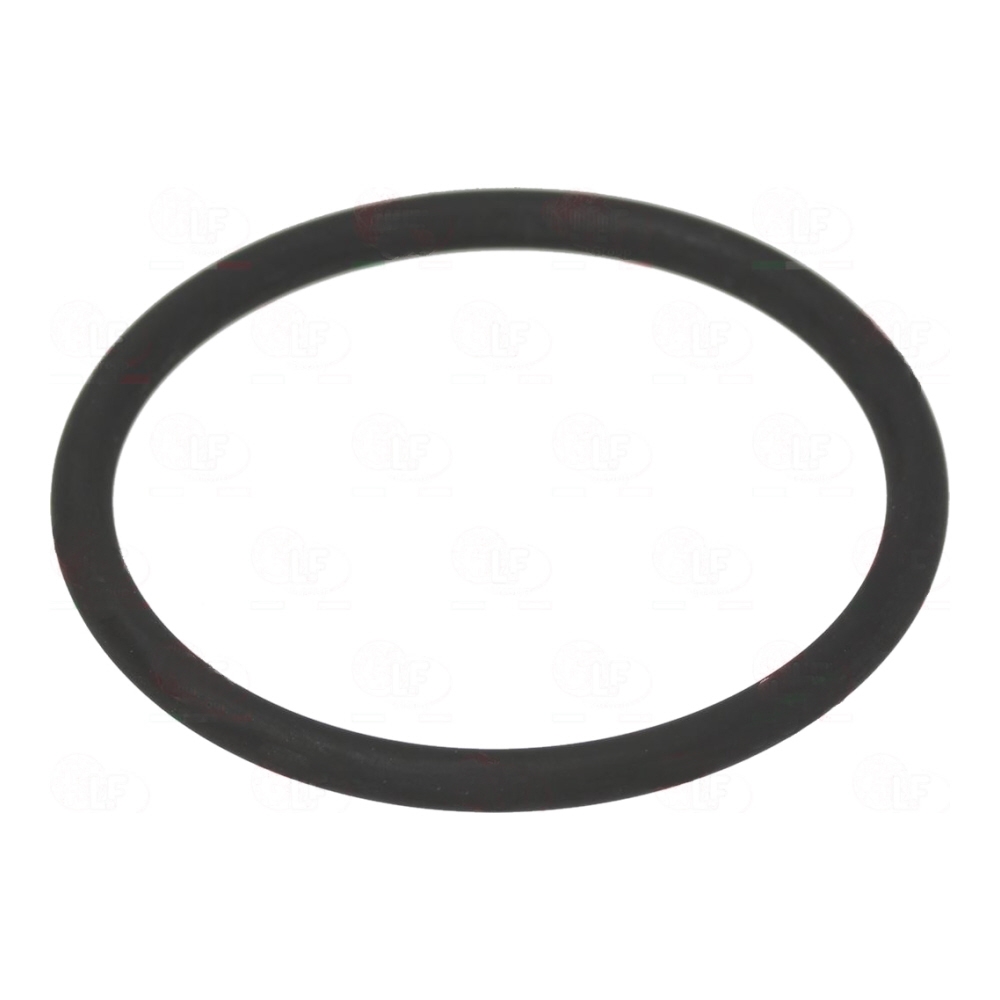

GRIMAC POD MACHINE TOP SEAL/O-RING 0147 VITON

GRIMAC – GROUP SEAL – LONG-LIFE 8.5MM – PN: GR5350. Ring thickness 3.53 mm – internal ø 42.86 mm

The Grimac Pod Machine Top Seal / O-Ring 0147 (Viton) is a specialized, high-performance sealing ring engineered for Grimac pod espresso machines and compatible models. Crafted from Viton® (FKM), this O-ring offers excellent resistance to high temperatures, coffee oils, and machine pressures — making it ideal for long-term use in demanding espresso environments.

Key Features & Benefits

• Premium Viton Material: Made from high-grade FKM (Viton®) elastomer, which offers superior thermal stability, chemical resistance, and longevity compared to standard rubber gaskets.

• Precise Dimensions: Internal diameter of 42.86 mm and a cross‑section (thickness) of 3.53 mm, matching Grimac’s original part specifications (PN: 1786117).

• Long-Life Seal: Designed to maintain a tight, leak-free seal under repeated use, reducing maintenance frequency in pod machines.

• Heat & Oil Resistant: Viton’s excellent resistance to high temperatures and coffee oils ensures that the O-ring retains its elasticity and sealing properties even in hot, pressurized brew cycles.

• Wide Compatibility: Compatible with various Grimac and Didiesse models. According to the Grimac parts catalog, O‑Ring 0147 Viton is used for coffee group heads.

• Easy to Install: Soft enough to seat properly but firm enough to resist extrusion—installation is straightforward with minimal tools.

• Lightweight: Weighs approximately 0.02 kg, adding negligible bulk to your spare parts kit.

• Cost-Effective: Priced affordably (Espresso Underground lists it at £3.53), providing an economical solution to maintain your machine’s performance. Espresso Underground

Technical Specifications

Why This O-Ring is Essential

Over time, group head gaskets in espresso machines – especially pod machines – degrade due to heat cycling, pressure, and exposure to coffee oils. A worn or brittle O-ring can lead to:

• Leaking during brewing

• Inconsistent pressure and poor extraction

• Increased wear on components due to poor sealing

Replacing the top seal regularly (depending on usage) ensures consistent brew quality, reliable machine performance, and reduced risk of leaks.

Maintenance & Installation Tips

1. Clean First: Before installing the new O-ring, clean the group head thoroughly. Residual coffee oils or grounds can prevent a proper seal.

2. Use Food-Grade Lubricant: Apply a small amount of food-safe lubricant (e.g., food-grade silicone grease) on the O-ring to help it slide into place and avoid twisting.

3. Check Fit: Ensure the new seal seats evenly around the groove — uneven seating can cause leaks.

4. Regular Inspection: Inspect the O-ring periodically (e.g., during machine service) for signs of wear, hardening, or cracking. Replace as needed to maintain optimal performance.
